제팬서보(japan servo)/스태핑모터(유니폴라)

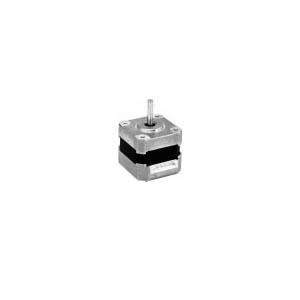

제팬서보(JAPAN SERVO)스태핑모터 KH42JM2-903,913
famotech
2007. 7. 4. 17:47
| |
| JAPAN SERVO www.famotor.com |
|
■ Unipolar type
| |
2상 Hybrid Stepping motor-Unipolar type ( stepping angle=1.8 deg./step) |
|
표준규격 |
Holding
Torque |
권선저항 |
전류
|
전압 |
Inductance |
Model
(CAD) |
|
Model
(pdf) |
mm |
mN-m |
kg-cm |
Ω/phase |
A/phase |
V |
mH/phase |
|
size |
thickness |
|
KH42JM2-903,913 |
42sq |
40 |
236 |
2.4 |
18.5 |
0.5 |
9.25 |
16.3 |
KH42JM2 | | |
